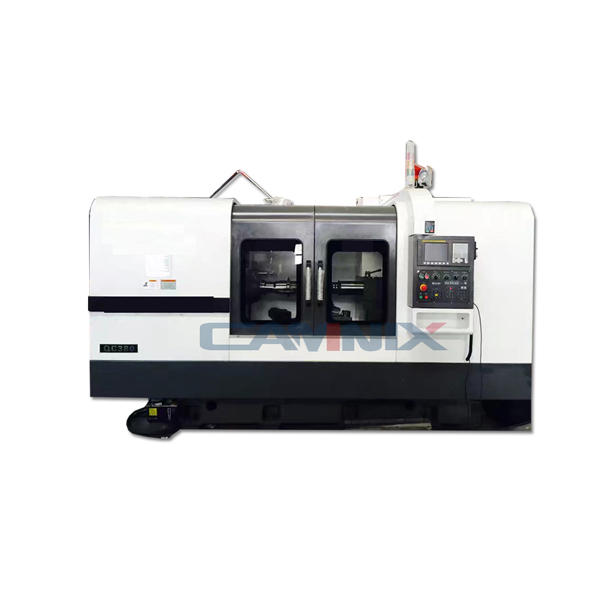

Ball Valve Spherical Turning Lathe
Introduction :
The Caminix spherical lathe is mainly used for turning the spherical surface and the ball valve. Processing spherical diameter is 1200mm - 1800mm, which can realize grinding and other processing work. The bed adopts rectangular guide rail with good stability and good rigidity. The lathe has advantages such as high rigidity, high precision, and cutting force is bigger.
Machine Specification:
Item | Unit | MC300 | MC600 | MC1050 | MC1200 |
Min. Dia. Of Spherical | Mm | 50 | 260 | 1000 | 1200 |
Max. Dia. Of Spherical | Mm | 550 | 900 | 1600 | 1800 |
Diameter of Spindle Hole | Mm | 100 | 130 | 100 | 100 |
Taper of Spindle Hole | Mm | 120 | 140 | 140 | 140 |
No. of Spindle Speeds | 18 | 21(12) | 21(12) | 21 | |
Spindle Speeds range RPM | Rpm | 6-800 | 3.15~315 | ||
Spindle Reverse Speeds | Rpm | 11-838 | 3.5~291 | ||
Swivel angle of Tool post | ° | ±90 | ±90 | ±55 | ±55 |
Main Power | KW | 11 | 22 | 30 | 30 |
Approx Net Weight | Ton | 4.4 | 12 | 25.4 | 27.4 |
Approx Machine Length | mm | 3725 | 4700 | 6120 | 6220 |
Approx Machine Width | mm | 1280 | 2500 | 2620 | 2720 |
Approx Machine Height | mm | 1690 | 2000 | 2520 | 2620 |
FEATURES OF STEEL BALL TURNING LATHE:
(1). The lathe bed adopts rectangular guide rails which with the best stability.
(2). The lathe spindle is of high precision which with 3 support structure. It can support heavy cutting.
(3). Operation is easy for workers.
(4). The rotary center line of the tool holder intersected with the rotating center line of the workpiece in order to ensure the roundness.
(5). You just need provide your workpiece and we will especially design precision lathe for you.
