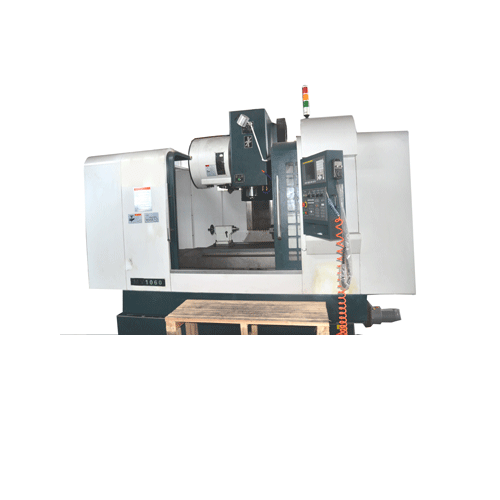

Vertical Machining Center MV1890

MV1890

X/Y/Z   travel

mm

1800/900/680

Distance   between spindle face and worktable

mm

160～840

Spindle   Speed

R/min

8000

Taper   hole of Spindle

BT50

Worktable   Dimension

mm

2000 x 900

Speed of X/Y/Z axis

m/Min

12/12/10

Automatic tools changer   system

BT50-24T

Maximum diameter/length/weight   of the tool

mm/mm/kg

Φ110/350/15

Power Supply

V

380

Spindle Motor Power

KW

18.5

Maximum load of the   worktable

kg

1600

Power of X/Y/Z feed   driving

KW

7/7/7

Air Pressure

Mpa

0.4～0.7

T-groove of worktable

mm

5 x22

Positioning precision

mm

±0.005

Re-position precision

mm

±0.005

Time of the changing   tool

sec

3

Total power of the   machine

KVA

35

Approx Overall   dimension (L*W*H)

mm

4800 x3500 x2900

Approx Total weight

kg

18000

Worktable diameter and   height for machine of 4 axis and more

mm

Optional
