QM580 Spherical Grinding Machine 8''-16''

Ball Size: DN200-DN400 8''-16''
Ball Materials: CS,SS,Monel,Alloy Steel
Coating Material: ENP,Tungsten Carbide,Inconel
Control System: FANUC System
Ball Screw: HIWIN

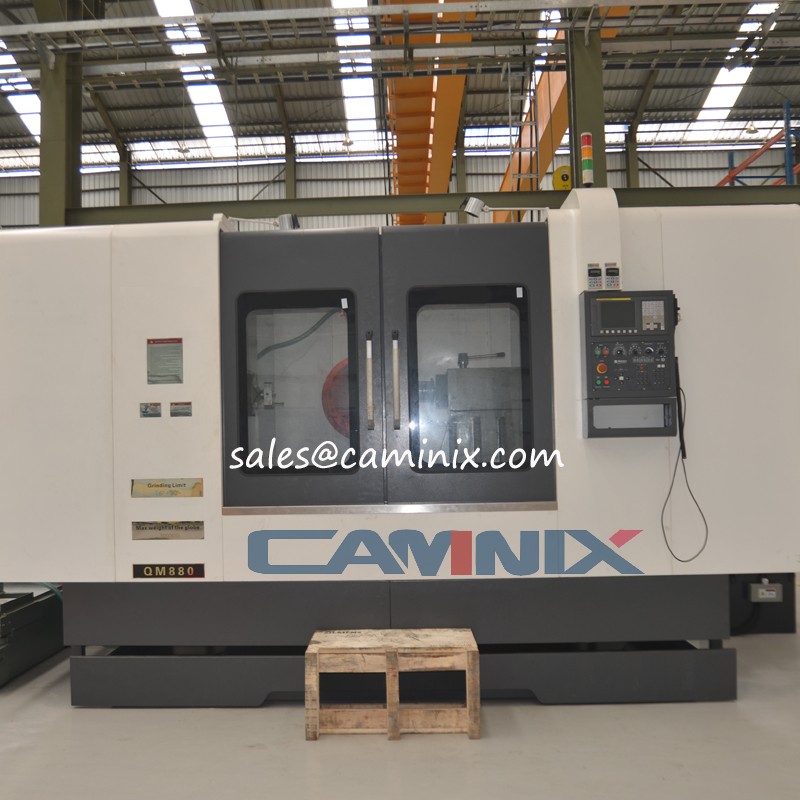

Introduction of CAMINIX Spherical Grinding Machine

CAMINIX CNC Ball Valve Grinding Machine is designed ,developed and manufactured for precise grinding of the sphere ( Balls) of the ball valves,With range of DN15-DN1600 1/2''-60''various kinds of balls with materials of carbon steel,stainless steel,alloy steel,Monel,Tungsten Carbide coating, etc. All of the machines are equipped with latest generation of FANUC brand control system, to accomplish the ball roundness of 0.01mm and roughness Ra0.2.

CNC BALL VALVE GRINDING MACHINE QM580

Item	Unit	Model: QM580
Item	Unit	Model: QM580
Max Ball Grinding Diameter	mm	Φ320-φ560
Max Ball Bore Diameter（≈）	Inch	8’’-16″
Distance between top central line to the table	mm	315
Max Ball Weight	Kg	500
The power of Main Spindle Motor	kw	45
Main Spindle Rotating Speed Range	Rpm	100-1200
The Power of the lathe-head Motor	kw	5.5
lathe-head Rotating Speed Range	Rpm	6-125
The Journey of the X/Z direction	mm	600/500
The adjusting range of the tailstock	mm	200-600
Head/tail stock apex		Mohs 6"
The precision of orientation of X/Z axis	mm	±0.02
The precision of repeat orientation of X/Z axis	mm	±0.01
Ball Roughness degree	Ra	0.4~0.2
Ball Roundness	mm	<0.02
Approx. Dimension(LxWxH)	mm	3700×2000×2600
Approx Net Weight	Kg	9000
